Simatic HMI

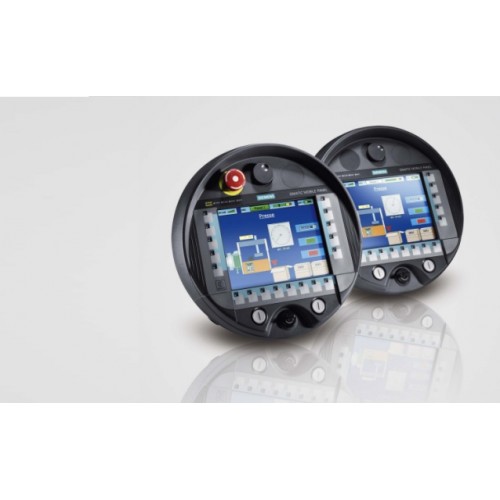

Mobile wireless operator panel with all HMI functions for direct operator control of the plant and machinery of any point. There are versions with or without security functions, IP 65 degree of protection, as well as the PROFIsafe communication.

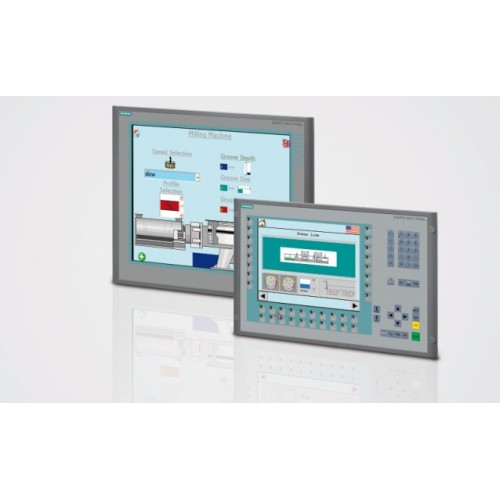

Compact, robust design, low mounting depth, without moving parts. TFT displays high resolution and 64K colors. Diagonal display size of 7.5 "; 10.4 "; 12 "; 15 "; 19 ". Windows CE operating system. Implemented Interfaces USB, MPI / DP, Profinet / Ethernet. Possible access to HTML applications via Internet Explorer. Expansion capabilities and functionality options: a software PLC WinAC OPC server, Sm @ rtService for remote maintenance and service through interaneta / Internet), Sm @ rtAccess to achieve client - server functionality. Software Programming - WinCC fleksibile.

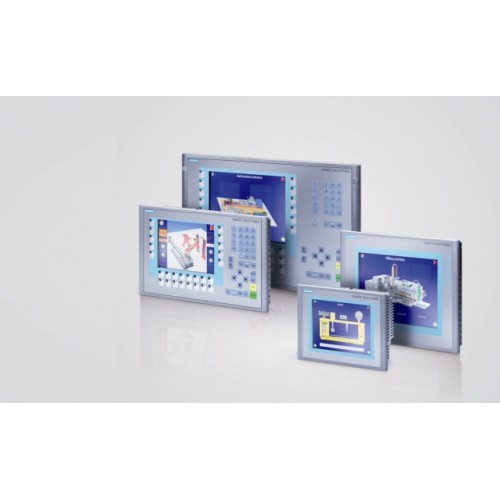

Touch panels (TP) with display touch screen or operator panel (OP) with membrane keyboard. Available in two versions, TP277A and TP277B with TFT display and a diagonal screen size 6 ". Windows CE operating system. Implemented Interfaces USB, MPI / DP, Profinet / Ethernet. Non-volatile memory data. The possibility of subsequent data processing allows support standard Windows CSV format. Supported Visual Basic scripts. Software Programming - WinCC fleksibile.

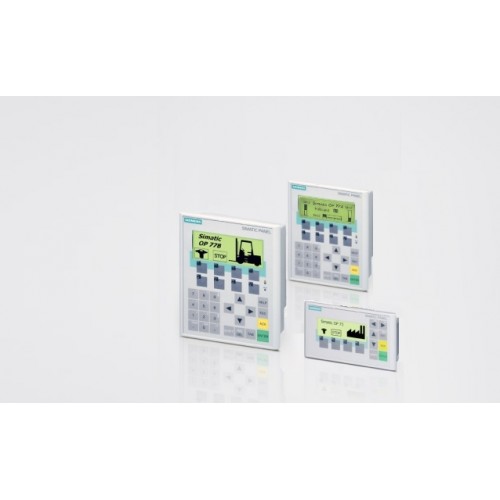

Touch panels (TP) with display touch screen or operator panel (OP) with membrane keyboard. Available in three variants, TP177, OP177B and TP177B with graphics STN display diagonal size of 5.7 "and 4 shades of blue / 256 color and widescreen TFT color display screen diagonal size of 4.3". Implemented Interfaces USB, Profibus, Profinet. Vector graphics. Recipes, trend displays, bar - graphs, passwords. Allows you to connect a printer and an external keyboard. Indelible buffer messages - without batteries. Software Programming - WinCC fleksibile.

Operator panels (OP) Compact design saves installation space. They are equipped with a membrane keyboard and graphic display that supports bitmaps and other graphic objects. Possible diagonal screen size 3 "and 4.5". Implemented interfaces MPI and Profibus. User can define the class of alarm.
