Milltronics

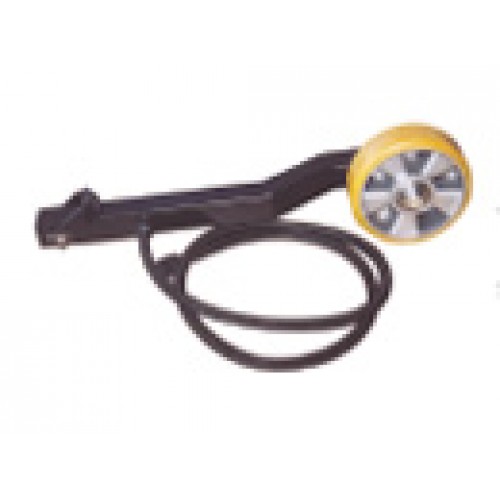

Milltronics TASS

Milltronics TASS

Milltronics TASS is a compact with the wheel speed sensor is ideal for use on conveyors, which can work in conjunction with scales giving a signal integrator that can calculate the amount of the transferred material. Milltronics TASS meets IP 65, because of its low profile can be installed where space is a problem.

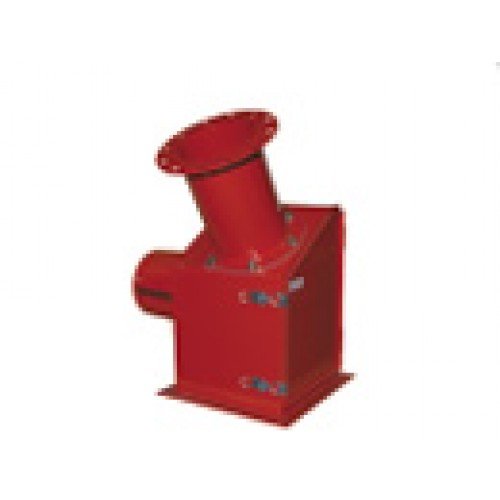

Milltronics E Serija

Milltronics E Serija

Milltronics E, V, and A Series flowmeters are small and medium capacity for products different density, size and fluidity. Measuring mechanism is externally located, flowmeters are resistant to corrosion, abrasion and heat.

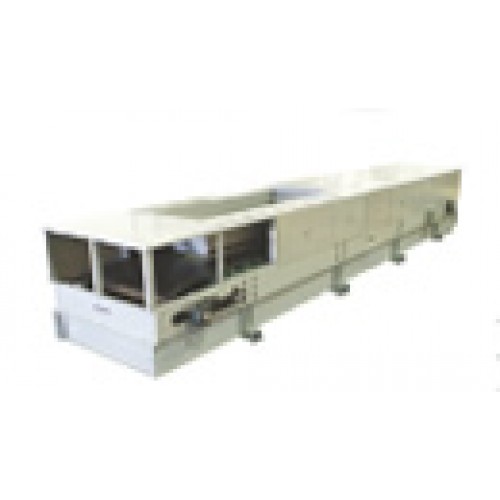

Milltronics Weighfeeder 1200

Milltronics Weighfeeder 1200

Milltronics Weighfeeder 1200 series consists of measuring high-capacity feeders that are used to add macro additives. Milltronics Weighfeeder 1200 achieves excellent performance in tough conditions like those in mines, quarries, cement and other process industries. They are made for the width of the conveyor belt from 460 mm to 1219 mm, length 2134 mm, with different configurations of input parts.

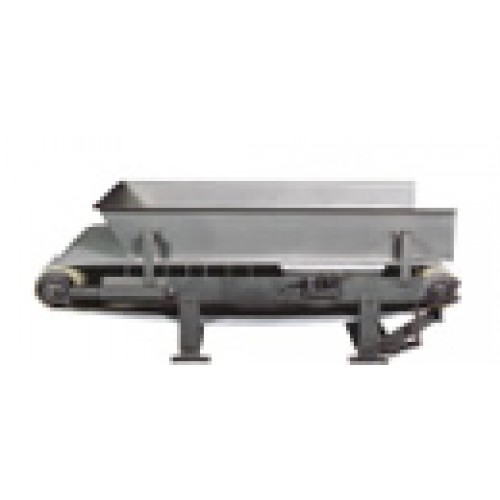

Milltronics Weighfeeder 600

Milltronics Weighfeeder 600

Milltronics Weighfeeder 600 is measuring jugs small to medium capacity, which is used to add micro additives. MS (mild steel) model is ideal for working with chemicals, powders and granular products with no need to rinse, while the SD (sanitary duty) model designed for the food industry, where it is necessary to wash under high pressure.

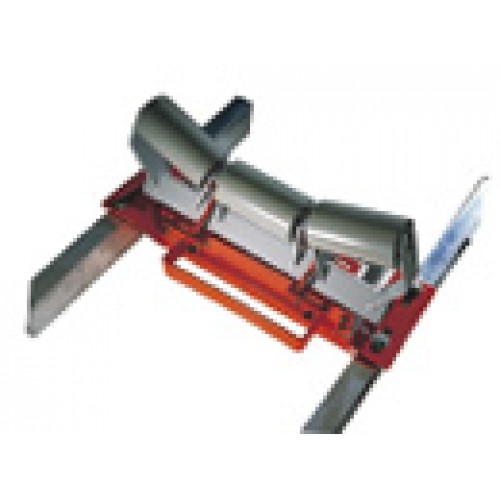

Milltronics MSI

Milltronics MSI

Milltronics MSI is a high-pressure scales for demanding applications in the production and control of unloading. Milltronics MSI scales allow for continuous in-line weighing of various products in primary and secondary industries. Proved in a variety of difficult tasks such as the extraction of materials (mines, quarries and mines), power plants, production of iron and steel, food and chemical industries. MSI scales are suitable for monitoring sand, flour, coal, sugar ..

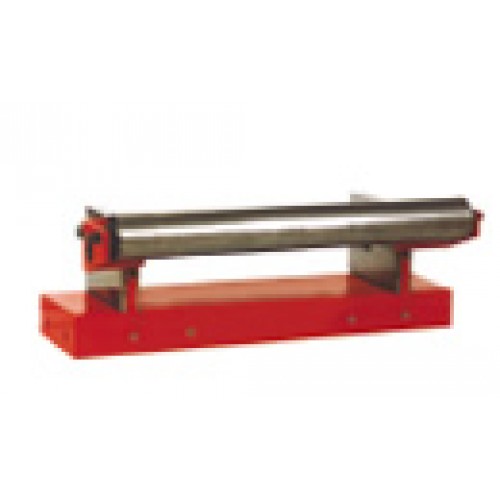

Milltronics MLC

Milltronics MLC

Milltronics MLC is the scale of a small capacities for easy loaded conveyors. MLC is suitable for the monitoring of products such as fertilizers, tobacco, granulated animal feed or sugar. Built-in load cell in MLC in providing quick response to a vertical load, which provides immediate response to the charger, and achieved exceptional accuracy and repeatability even at very light loads. MLC can be mounted on existing flat conveyors and chargers.

Our automation solution for small hydropower plant

OA-AE1

 -    cabinet dimensions 2000x1600x600

-    PLC S7 300 i S7 1200 Siemens

-    HMI 15“ Siemens

-    Lot equipment Schneider Electric

-    SCADA WinCC Professional

-    ComAp relay for the protection and synchronization

-    Basler device control initiatives





This is certainly a solution that consists of two cabinets containing equipment and automation equipment for the connection of a generator to the grid.
The system is controlled by a controller 300 Siemens S7 series. Power plant can be operated in three ways: through the panel, push button and via SCADA control room.
All measurements (power, current, voltage) can be permanently archived on a computer that is running the SCADA.








OA-AE2



-    cabinet dimensions 1200x800x400

-    PLC S7 1200 Siemens

-    HMI 6,4“ Siemens

-    Lot equipment Schneider Electric

-    ComAp relay for the protection and synchronization





This is the solution for more modest applications in the sense that we do not have the option of archiving data, but whatever it contains all the elements necessary for the management of the power plant.
The system manages the S7 controller 1200, which all measured data transferred to the panel.
Management is possible through the panel or using the key. The system can be upgraded to meet the requirements of the client.
