Simatic micro panels

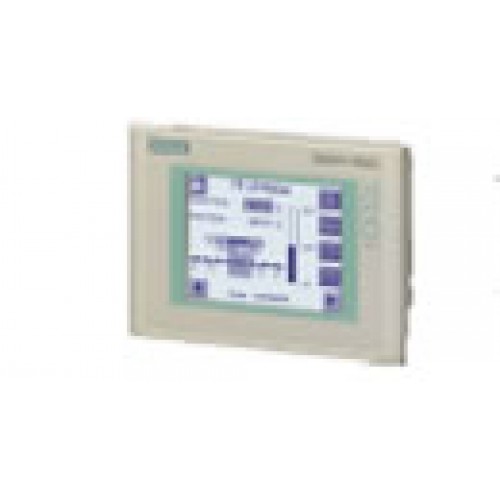

Touch screen panel TP177 Micro
Touch panel for operator control and monitoring of small industrial machinery and facilities. STN 5.7 "graphic touch display touch screen, four shades of blue. Connecting to the PLC via MPI or Profibus DP cable. Supports 500 alarms, 32 classes of alarms, 250 screens and 250 process tags. Software Programming - WinCC fleksibile.

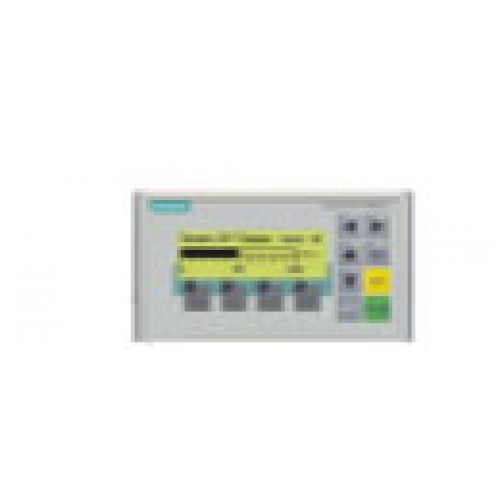

Operator panel OP73 Micro
Operator panel control and monitoring of machines and systems. Graphic LCD 3 "black - white display. Membrane keypad with 8 system, and 4 user-defined function keys. Communication with S7-200 controller via the integrated PPI interface. Connecting to the PLC via MPI or Profibus DP cable. Supports 250 alarms, 32 classes of alarms, 250 screens and 500 process tags. Software Programming - WinCC fleksibile.

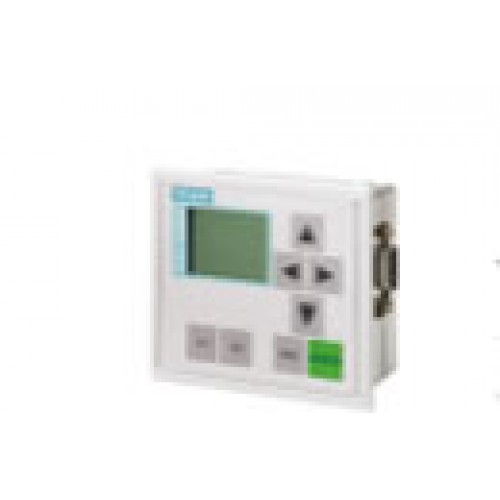

Tekst displeji TD100C /TD200 /TD200C / TD400C
The optimum solution for all HMI operation with SIMATIC S7-200 controller. Text FSTN / STN display, allows 2 rows x 20 characters / 4 rows x 24 characters. The keyboard is a membrane with functional and system keys. Communication with S7-200 controller via the integrated PPI interface. Supports 40/80 alarm / alarm class. 32/64 screen, 288/864 process tags. Software Programming – MicroWin.
Our automation solution for small hydropower plant
OA-AE1
- cabinet dimensions 2000x1600x600
- PLC S7 300 i S7 1200 Siemens
- HMI 15“ Siemens
- Lot equipment Schneider Electric
- SCADA WinCC Professional
- ComAp relay for the protection and synchronization
- Basler device control initiatives
This is certainly a solution that consists of two cabinets containing equipment and automation equipment for the connection of a generator to the grid.
The system is controlled by a controller 300 Siemens S7 series. Power plant can be operated in three ways: through the panel, push button and via SCADA control room.
All measurements (power, current, voltage) can be permanently archived on a computer that is running the SCADA.
OA-AE2
- cabinet dimensions 1200x800x400
- PLC S7 1200 Siemens
- HMI 6,4“ Siemens
- Lot equipment Schneider Electric
- ComAp relay for the protection and synchronization
This is the solution for more modest applications in the sense that we do not have the option of archiving data, but whatever it contains all the elements necessary for the management of the power plant.
The system manages the S7 controller 1200, which all measured data transferred to the panel.
Management is possible through the panel or using the key. The system can be upgraded to meet the requirements of the client.
